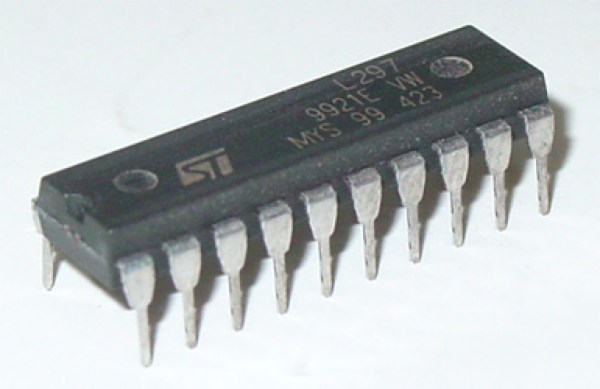

Stepper Motor Driver Ic L297 Circuit
- The driver features adjustable current limiting and five different microstep resolutions. This is the tiniest stepper motor driver I've ever seen. 'Easy CNC Stepper Motor Drivers' sells a few stepper motor drivers that operate from 12 VDC to 48 VDC; up to 10A motor current capacity per phase. Screw terminal block.
- 5 Phase Stepper Motor Driver Circuit The compact 5 Phase stepper driver project can handle motor up to 3.5amps supply 12-30V DC, driver has facility to set the load current, driver provides half stepping and full stepping, and easy to drive with step and direction pulse, trimmer pot provided to set the current, The SI-7510 is a pre-driver IC for.
The name of this motor is given so because the rotation of shaft is in step form which is different from DC or any other motor. In other motors the speed of rotation, the stop angle are not in complete control unless necessary circuit is inserted. This non-control is present because moment of inertia, which is simply a character to start and stop on command without delay. Consider a DC motor, once its powered the speed of motor increases slowly until it catches the rated speed. Now if a load is put on the motor, the speed decreases over the rated and if load is further increased the speed further decreases. Now if the power is turned off the motor does not come to halt immediately as it will have moment of inertia, it stops slowly. Now consider this is a case in a printer the paper outflow does not stop in time, we lose paper every time we start and stop.
Stepper motor driver circuit to control 1 piece and 2 piece L297 driver floor L298 (dual full bridge driver) used 4 amp power operating voltage highest 35 volts. Printed circuit board pcb design has a very professional design, double-storey, but proteus 7.7 crafted with isis simulation and ares pcb drawing files.
We need to wait for the motor to pick the speed and due time the paper is lost. This is unacceptable for most of the control systems, so to solve this kind of problems we use stepper motors.The stepper motor does not work on constant supply. It can only be worked on controlled and ordered power pulses. Before going any further we need to talk about UNIPOLAR and BIPOLAR stepper motorS. As shown in figure in a UNIPOLAR stepper motor we can take the center tapping of both the phase windings for a common ground or for a common power. In first case we can take black and white for a common ground or power. In case 2 black is take for a common.
In case3 orange black red yellow all come together for a common ground or power.In BIPOLAR stepper motor we have phase ends and no center taps and so we will have only four terminals. The driving of this type of stepper motor is different and complex and also the driving circuit cannot be easily designed without a microcontroller.The circuit which we designed here can only be used for stepper motors of UNIPOLAR type.The power pulsing of UNIPOLAR stepper motor will be discussed in circuit explanation.Circuit Components. +9 to +12 supply voltage. 555 IC. 1KΩ, 2K2Ω resistors.
Bipolar Stepper Motor Driver Ic
220KΩ pot or variable resistor. 1µF capacitor, 100µF capacitor (not a compulsory, connected in parallel to power). 2N3904 or 2N2222 (no. Of pieces depend on type of stepper if it’s a 2 stage we need 2 if it’s a four stage we need four). 1N4007 (no. Of diodes is equal to no.
Of transistors). CD4017 IC,.Stepper Motor Driver Circuit Diagram and ExplanationThe figure shows the circuit diagram of two stage stepper motor driver. Now as shown in the circuit diagram the 555 circuit here is to generate clock or the square wave. The frequency of clock generation in this case cannot be kept constant so we need to get variable speed for the stepper motor.
To get this variable speed a pot or a preset is paced in series with 1K resistor in branch between 6 th and 7 th pin. As the pot is varied the resistance in the branch changes and so the frequency of clock generated by 555.In the figure the important thing is only the third formula. You can see that the frequency is inversely related to R2 (which is 1K+220k POT in the circuit).
So if R2 increases the frequency decreases. And so if the pot is adjusted to increase the resistance in the branch the frequency of clock decreases.The clock generated by is fed to DECADE BINARY counter. Now the decade binary counter counts the number of pulses fed at the clock and lets the corresponding pin output go high. For example if the event count is 2 then Q1 pin of counter will be high and if 6 is count the pin Q5 will be high. This is similar to however the counting will be in decimal (ie., 1 2 3 4 9) so if the count is seven only Q6 pin will be high. In binary counter Q0,Q1 and Q2 (1+2+4) pins will be high. These outputs are fed to transistor to drive the stepper motor in orderly way.In figure we are seeing a four stage stepper motor driver circuit very similar to the two stage one.
In this circuit, it can be observed that the RESET connected to Q2 before is now moved to Q4 and the opened Q2 and Q3 pins are connected to another two transistors to get a four pulse driving set to run the four stage stepper motor. So it is clear that we can drive up to ten stage stepper motor. However one should move the RESET pin up in order so to fit in driving transistors in place.The diodes placed here are to protect the transistors from inductive spiking of the stepper motor winding. If these are not placed one might risk blowing the transistors. Greater the frequency of pulses,greater the chance of blow up without diodes.Working of Stepper Motor DriverFor better understanding of step rotation of stepper motor we are considering a four stage stepper motor as shown in figure.Now consider, for an example, all coils are magnetized at a time.
Stepper Motor Drive Circuit
The rotor experiences forces of equal magnitude from all around it and so it does not move. Because all are of equal magnitude and are expressing opposite direction. Now if the coil D only magnetized, the teeth 1 on rotor experiences an attractive force towards +D and teeth 5 of rotor experiences a repulsive force opposing the –D, theses two forces are represents an additive force clock wise. So the rotor moves to complete a step. After that it stops for the next coil to energize to complete next step.
This goes on until the four steps are complete. For the rotor to rotate this cycle of pulsing must be going on.As explained before, the preset is set to a value for a certain frequency of pulses. This clock is fed to the decade counter to get regular outputs from it.
The outputs from decade counter are given to transistors to drive the high power coils of stepper motor in sequential order. The tricky part is, once a sequence is complete say 1, 2, 3, 4 the stepper motor completes four steps and so it is ready to start again however the counter has a capacity to go for 10 and so it goes on without interruption. If this happens the stepper motor must wait till the counter completes its cycle of 10 which is not acceptable. This is regulated by connecting RESET to Q4 so when counter goes for five count it resets itself and starts from one, this starts the sequence of stepper.So this is how the stepper continuous it’s stepping and so the rotation happens. For a two stage the RESET pin must be connected to Q2 for the counter to resets itself in the third pulse. This way one can adjust the circuit to drive ten step stepper motor.
Banh,because you are vietnamese, you can come to to see my translated tutorial of Stepping control of Douglas W. He's my 'online' teacher.
He's taught meeh via email for 2 years.If you wanna see the original document, search for Douglas W. JonesIts a wonderful Stepping control tutorial.The torque in these 2mode of full step and half step is different.At full step, if you enable 2 winding at a time, you get 1.4 times stronger torque than normal. But at half step, the torque will change each half step, 1, 1.4, 1, 1.4.etc. Half step is the combination of 2 full step mode.Half step creat higher resolution.revolution = cycle, it depends on the number of pulse, not on the half step or full step modes.With full step, you need N pulses to turn the motor a revolution, in half step, you need 2N pulses.
Pulses here means a control vector. No, INHx are connected to enable bit of L298, and they are outputs of L297. You cannot control it normally. To control these pins, you need CONTROL input to select the mode of control.ABCD is connect to the inputs of L298, to generate pulses on dual H bridge. INH is used to stop the L298. It's active LOW, because as output low on INH, it inhibits (stop) ENABLE bit on L298.You can use CONTROL signal to select the chopper on ABCD or INH. You only need to use control HIGH (chopper on ABCD) if you need this technique.
Yes.Vref of a driver chip is the output, that you can use your ADC to measure this voltage, and disable the driver if the Vref higher than the max Vref.Your motor is normally running at 2A, but at starting it may rearch 3A. So you cannot stop the motor at 3A. You can use a controller to lock the driver if it's at 3A for very long time or if it's higher than 3A.So, in this case, your Vref should be 3A.
Stepper Driver Circuit
0.5Ohm = 1.5V.However, try to choose Vref 5V which applied to VDD of your uC. In this case, you can use your comparator but not a ADC to control the driver.Why?
Because, some uC do not support ADC, but it supports comparator, such as: 16F628, or 16F628A. Oh, sorry, I said about the Vref on uC, that I use to control L298. SenseA, and SenseB are connected to Vref of uC, that is why I say Vref is the output from driver chip.However, a internal comparator of L297 can be used, and you can apply the max voltage to chopper the driver, if the current is going too high.However, I don't use it in my driver, because as I said, a high current could be created at the beginning (especially with DC motors), so if you chop down the chip, you cannot control the driver anylonger.That why I use SenseA, and SenseB connect directly to microcontroller. I use software to detect the high current. If high current is higher than normal current for so long time, I'll cut down the chip.
For short circuit protection, you should use hardware. Software is used in this case to protect the chip and the motor if you apply a heavy load, or the motor is stopped by external forces.With stepping it seems to be oki with comparator protection, so you can use the Vref inputs as you want. It depends on the motor that is connected, the desired speed and the efficiency you're trying to achieve.Setting it to 0 will send current control thru to INH1 & INH2. This turns OFF all transistors in the H-bridge when the current exceeds the reference level. This will result in current to decay faster and will allow the motor to run faster but hotter. This is used for steppers with high inductance.Setting it to 1 will send current control thru to ABCD.
Mp3 converter. The freewheeling motor current will decay slower. The current will fluctuate less and so there is less ripple, less core loss and run cooler. Low inductance motors will benefit from this control method. It depends on the motor that is connected, the desired speed and the efficiency you're trying to achieve.Setting CONTROL to 0 will send current control thru to INH1 & INH2.
This turns OFF all transistors in the H-bridge when the current exceeds the reference level. This will result in current to decay faster and will allow the motor to run faster but hotter.
This is used for steppers with high inductance.Setting CONTROL to 1 will send current control thru to ABCD. The freewheeling motor current will decay slower. The current will fluctuate less and so there is less ripple, less core loss and run cooler. Low inductance motors will benefit from this control method.With the same clock, running at half steps will reduce the RPM to half that of full steps. Half steps will reduce vibration and acoustic noise.
Does this mean that:-if CONTROL is set to 0V, will there still be a protection from high current since INH1 and INH2 are disactivated? Cause I've read that those two pins Disable the L298 when high current is detected.-does the CONTROL pin set depends on the motor kind (bipolar or unipolar)?another thing:from the datasheet, three driving modes are possible:.NORMAL DRIVE MODE.HALF STEP MODE.WAVE DRIVE MODEthe second and third modes needs INH signals (so CONTROL = 1 volt) and not the first mode, why?
